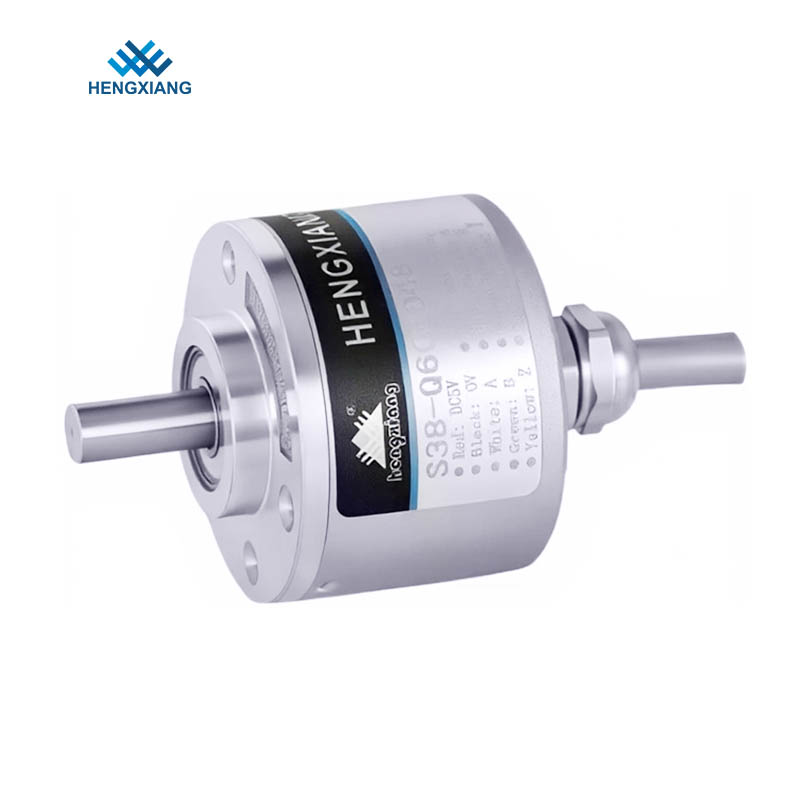

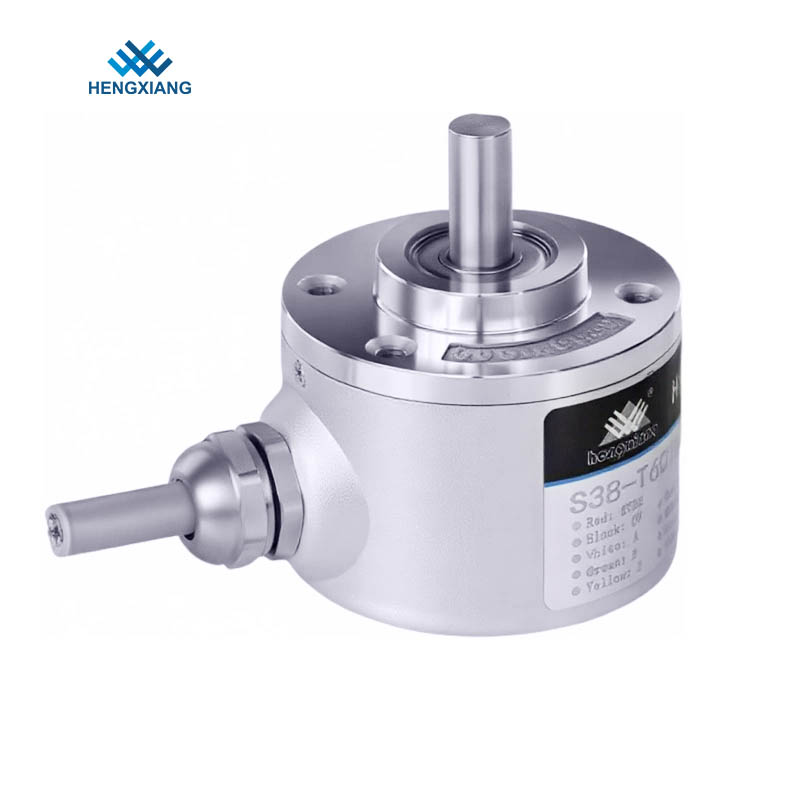

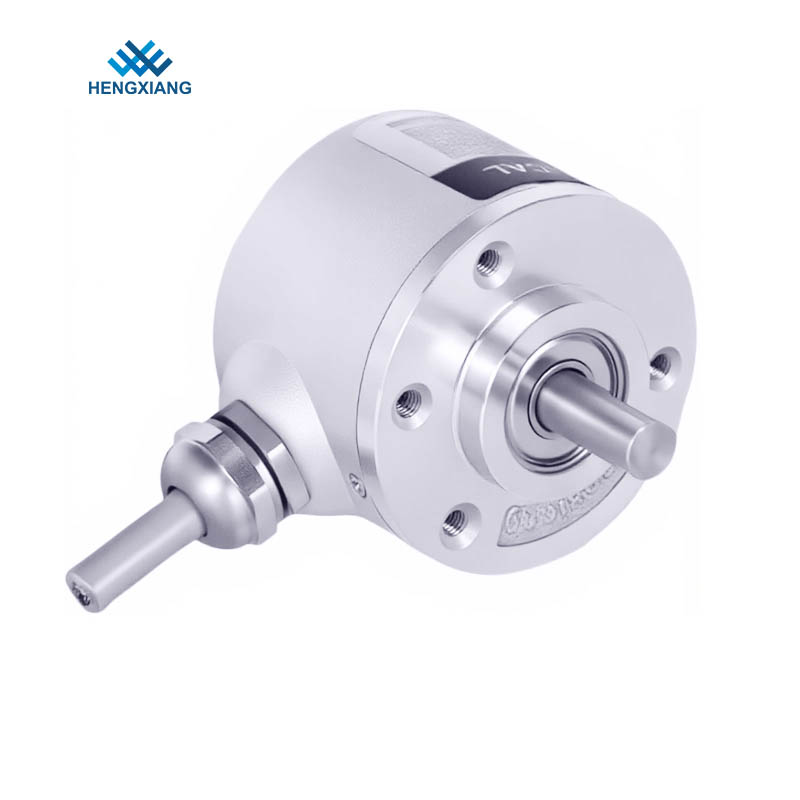

S38 Incremental Optical Encoder (Solid shaft)
S38(50-900ppr)Photoelectric induction.
Customization accepted.
Pulse range 50-32768ppr, supports a variety of electrical interfaces.
Features a circuit design with wide voltage range, anti-interference, reverse polarity protection, and short-circuit protection.
-
.Principle:Photoelectric sensing, the most advanced sensing method
.External diameter 38mm、thickness 28mm、diameter of shaft up to 8mm.
.Reverse polarity protection
.Short circuit protection
.Multiple electrical interfaces available
.Resolution per turn up to 32768PPR
Introduction:
S38 is a small economic universal design, compact, sturdyhigh safety,and commonly used in industrial automations.
Applications:
Used in various applications of automation like CNC machine tools, industrial and medical equipment, elevators, electric motors, and testing equipments.
We work closely with you to develop custom-made encoders that address your specific needs, making sure the final product meets all your expectations.
-
ITEM
PARAMTERS
Brand
HENGXIANG
Encoder type
Incremental encoder
External diameter
38mm
Thickness
28mm
Shaft length
13mm
Solid Shaft diameter
5mm; 6mm;8mm(D shape)
Resolution
50;60;66;100;200;250;300;360;400;450;500;512;
600;720;750;800;900;1000;1024;1200;2000;2048;2500;
3600;4000;4096;4800;5000;7200;8192;10000;16384
20000;28800;32000;32768
Output mode
NPN&PNP
Voltage output
Push-pull output
Difference output(TTL,HTL,RS422)
Reverse polarity protection
√
Short circuit protection
√
Output phase
Phase A,B,Z,A-,B-,Z-
Outlet type
Radial cable 7 Axial Cable
Protection grade
IP50 & IP65
Cable length
1000MM
package
Carton box
Net weight
About 120g (with package)
starting torque
less than 4.4X10⁻³ N.m
Intertia moment
less than 1.5x 10⁻⁶kg.m²
Shaft load
Radial 30N; Axial 20N
Top REV
6000RPM ;IP65≤4000r rpm
Environmental temperature
Operating:-20 ～+90°；storage:-25 ～+95°
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)
490m/s² ,11 ms three times for X,Y,Z direction individually
Shaft Material
Stainless steel
Shell Material
Alminium alloy
Cable length
1000mm(cable with shielding)
Certification
CE
-
