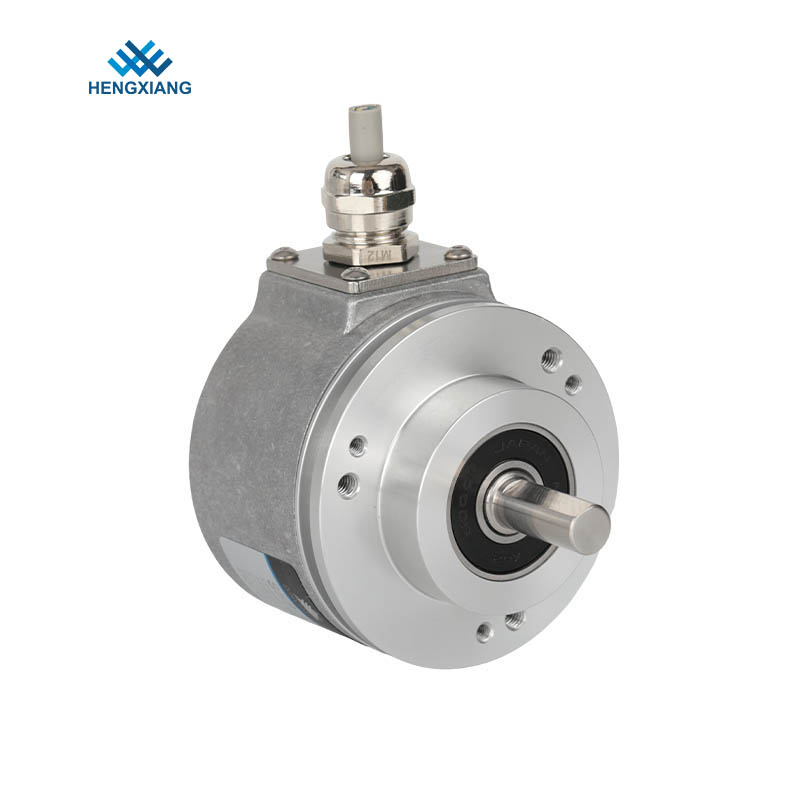

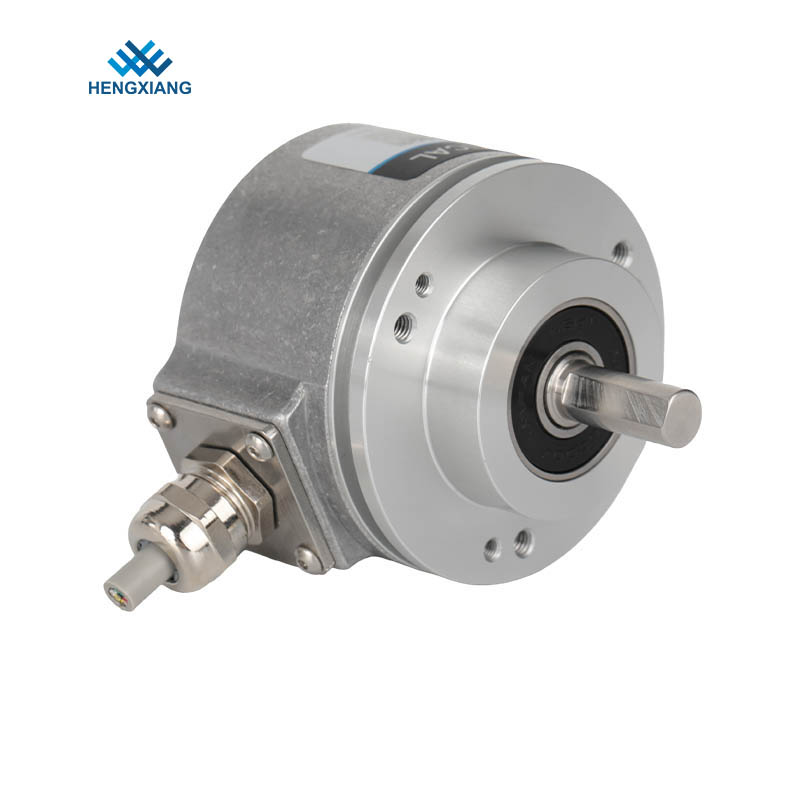

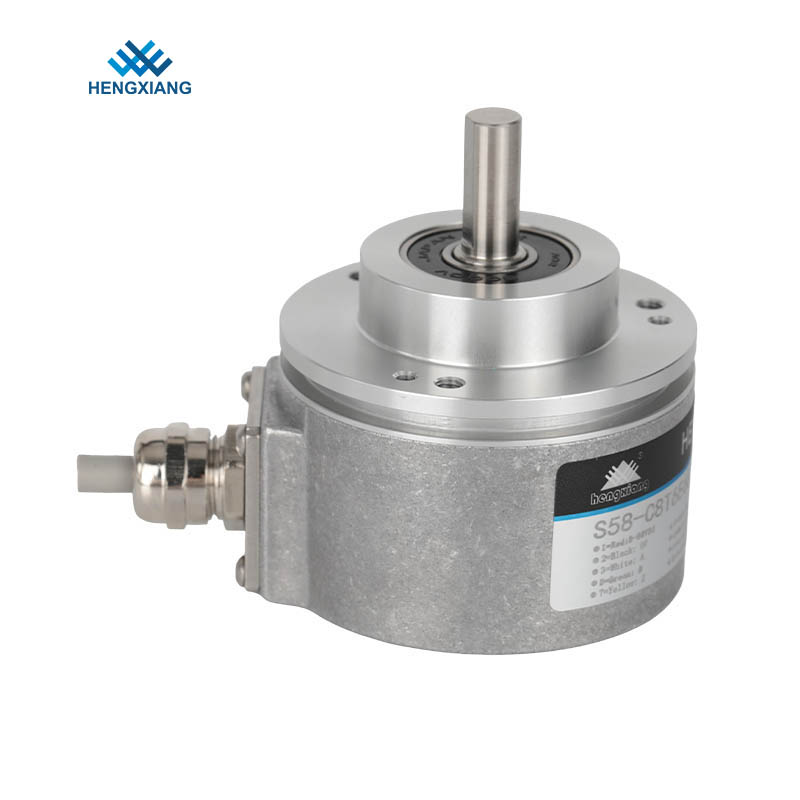

SJ58 Absolute Type Parallel Gray Code Output Encoder (Solid shaft)
SJ58-5-6bitPhotoelectric sensing.
Customization accepted.
Pulse frequency 5-12 bits, supports a variety of electrical interfaces.
Features a circuit design with wide voltage range, anti-interference, reverse polarity protection, and short circuit protection.
-
Encoder external diameter 58mm、thickness 36-40mm、
diameter of shaft 6mm, 08mm, 10mm available,
Multiple mounting flange sizes available,
Adopt non-contact photoelectric principle,
Resolution per turn up to 12 Bits (4096),
Reverse polarity protection (Up=8...30V DC),
Short circuit protection.
Introduction:
SJ58 is a solid shaft rugged housing design, single-turn absolute photoelectric encoder, capable of outputting 12Bits of parallel gray code position information, the electrical interface has an open collector NPN or PNP, the direction of rotation can be controlled externally, four mounting flange and collar sizes, the highest protection grade is lP65, the product structure is compact, high security, suitable for high-intensity mechanical movement positioning fields.
Precision meets personalization at Hengxiang. Our OEM and ODM encoder services are built to deliver custom products, ensuring a perfect fit for your unique application needs. -
Items
Basic parameters
Brand
HENGXIANG
Encoder type
absolute encoder
External diameter
58mm
Hollow shaft type
Solid shaft
Hollow Shaft diameter
6mm;8mm;10mm
Bit(steps)
5 bit;6 bit;7 bit;8bit;9bit;10 bit;11 bit;12bit
Supply voltage
DC5V ； DC8-30V
Outlettype
radial cable
radial socket
Count direction
counterclockwise
outside control direction
clockwise
Interface
NPN/PNP low level effective
NPN/PNP high level effetive
Protection grade
IP65
Cable length
1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current
100mA MAX
Top response frenquency
100KHZ
Allowable ripple
≤3%rms
Load Voltage
≤DC30V
Output code
gray code
Precision
360/(resolution x 4)
Insulation strength
AC500V 60s
Insulation resistance
10MΩ
GND
not connect to encoder
starting torque
less than 10x 10⁻³N.m
Intertia moment
less than 11x 10⁻⁶kg.m²
Shaft load
Radial 30N; Axial 20N
Top REV
≤4000RPM
Bearing life
1.5x10⁹ revs at rated load(100000hrs at 2500RPM)
Environmental temperature
Operating:-20 ～+85°C(repeatable winding cable: -10°C)；
storage:-25 ～+90°CEnviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 0.75mm,10-55Hz,2 hours for three axis individually
Sock(endure)
49m/s² , three times for X,Y,Z direction individually
Shaft Material
Stainless steel
Shell Material
Dia cast aluminium
Cable length
1000mm(cable with shielding)
Certification
CE
package
Carton box
Net weight
About 180g (with package)
-
