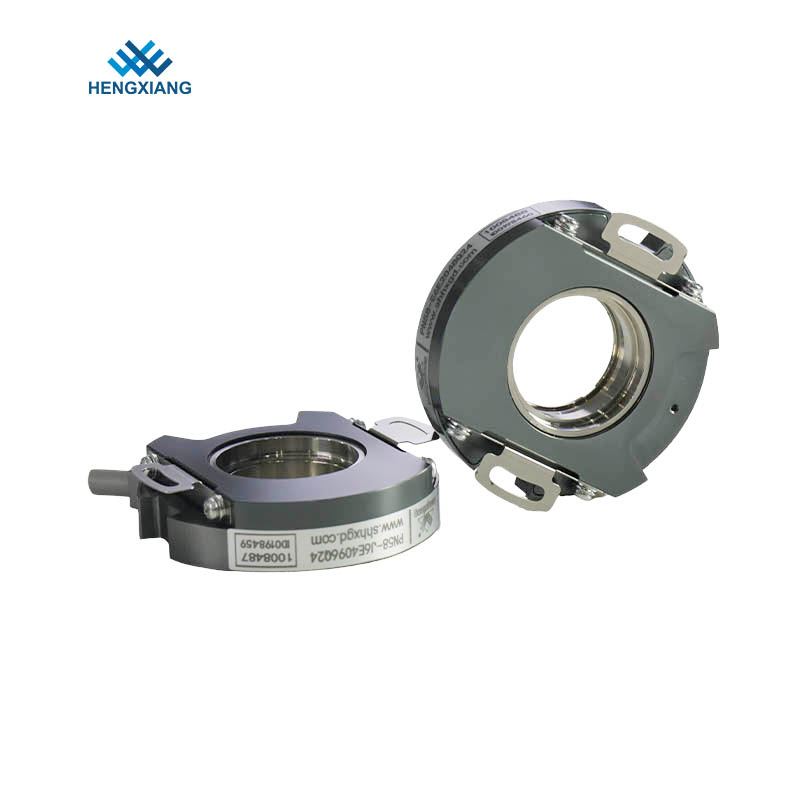

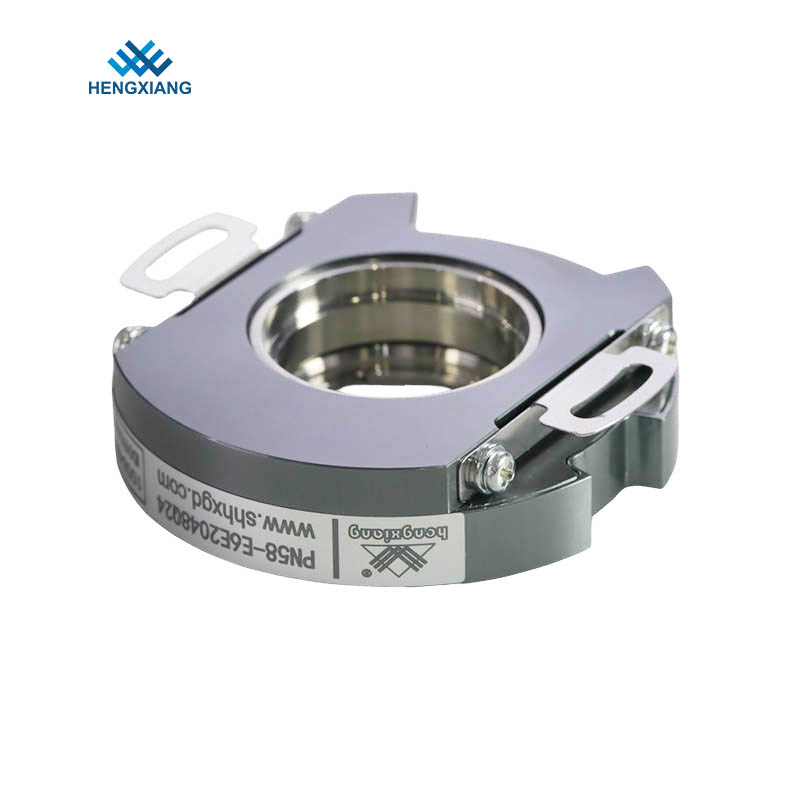

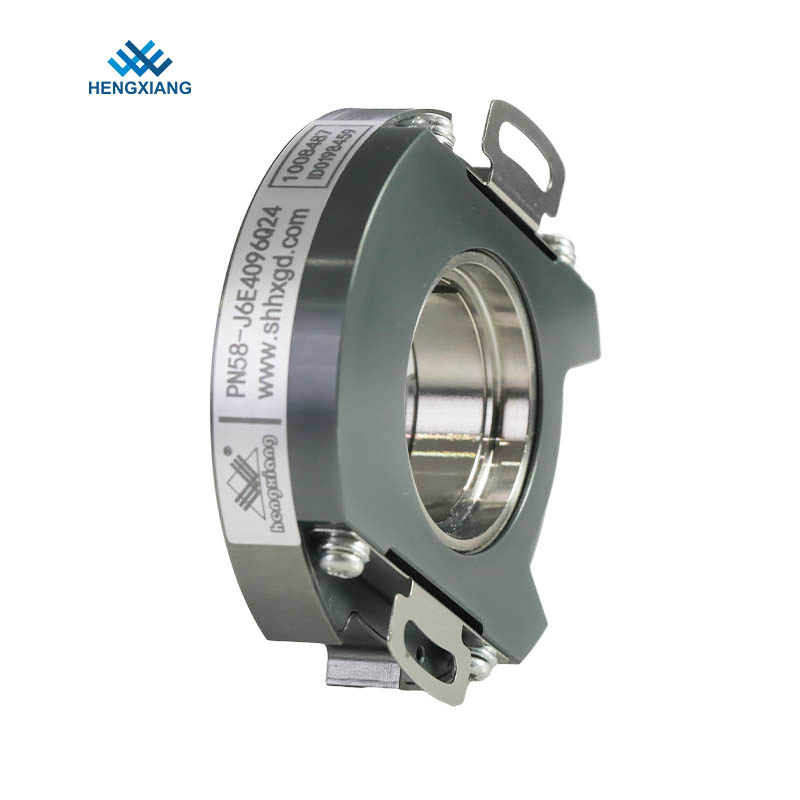

PN58 Incremental Optical Encoder (Hollow shaft)
PN58 (1024-2500ppr)Photoelectric sensor.
Customization accepted.
Pulse frequency 1000-5000 ppr, compatible with various electrical interfaces.
Concentric locking device.
Engineered with a wide voltage range, anti-interference, reverse polarity protection, and short-circuit protection.
-

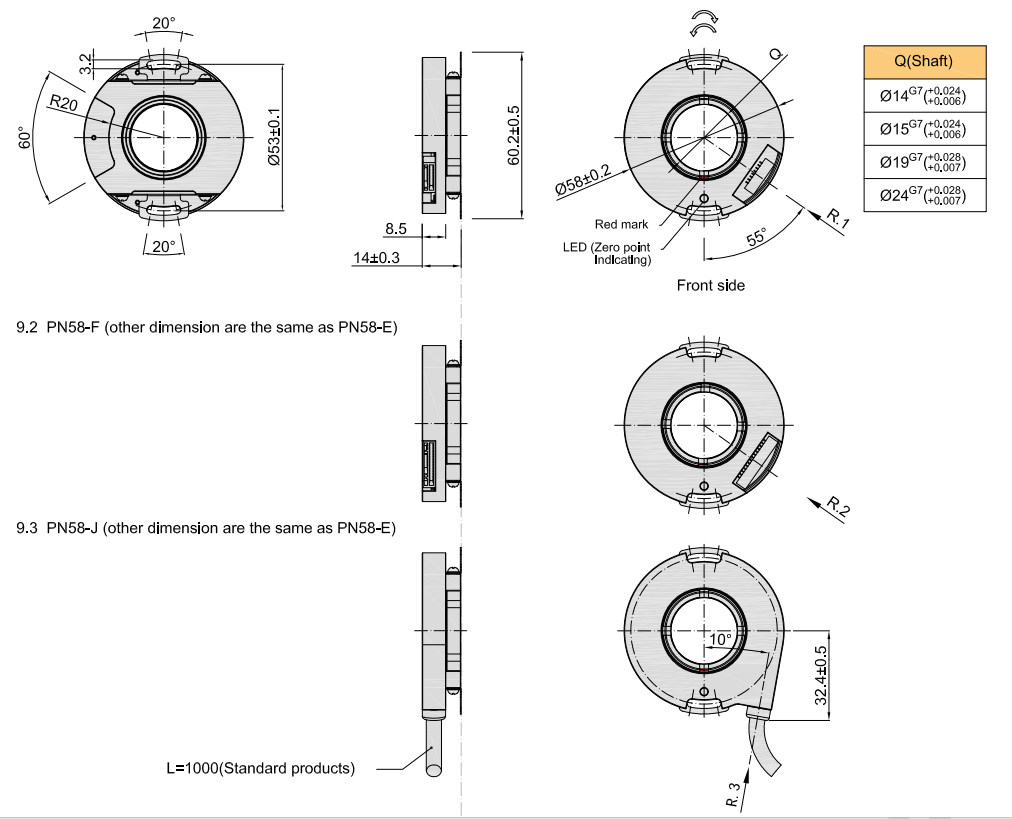

Encoder external diameter 58mm、thickness min 14mm、diameter of shaft up to 24mm
Adopt non-contact photoelectric principle
Reverse polarity protection
Short circuit protection
Multiple electrical interfaces available
Resolution per turn up to 5000PPR
Introduction:
PN58 with its unique through-shaft concentric locking device,double bearing large-aperture ultra-thin design, flexible springplate instalation, multiple electrical interfaces, and protectiongrade lP50, can solve the installation problems of low space limitations and slight axial movement of the motor shaft.
We at Hengxiang are capable of providing encoder services tailored to your needs. Leveraging our dual OEM and ODM offerings, we’ll create custom encoders that fit your requirements like a glove.
-
Items
Basic parameters
Brand
HENGXIANG
Encoder type
Incremental Type
External diameter
58mm
Thickness
14mm
Hollow shaft type
Through shaft
Hollow shaft diameter
14mm;15mm;19mm;24mm
Resolution
1024/8;/10;/16; 2048/8;/10;/16; 2500/8;/10;/16; 4096/8;/10;/16; 5000/8;/10;/16;
8192;/8;/10;/16; 10000/8;/10;/16Output phase
3=A+B+Z; 6=A+A-+B+B-+Z+Z-; 6=Less wiring type A+B+Z Delay U+V+W;
12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W-Supply voltage
DC5V; DC8-30V
Outlet type
Radial connector; Radial cable
Output mode
N=OC(DC5V&8-30V); C=TTL(DC5V)
E=HTL(DC8-30V); S=TTL(DC5V)(Less wiring type)
Consumption current
120mA Max
Top response frenquency
100kHZ; 500kHZ; 800kHZ
GND
not connected to the encoder, must be effectively connected to GND
Starting torque
Less than 20×10⁻³ N.m
Inertia moment
Less than 30×10⁻⁶ kg.m²
Environmental temperature
Operating: -20~+95℃; Storage: -25~+100℃
Enviromental humidity
Operating and storage: 35~85%RH(noncondensing)
Protection
IP50
Material
Aluminium alloy
Certification
CE
package
Carton box
Net weight
About 90g
-
