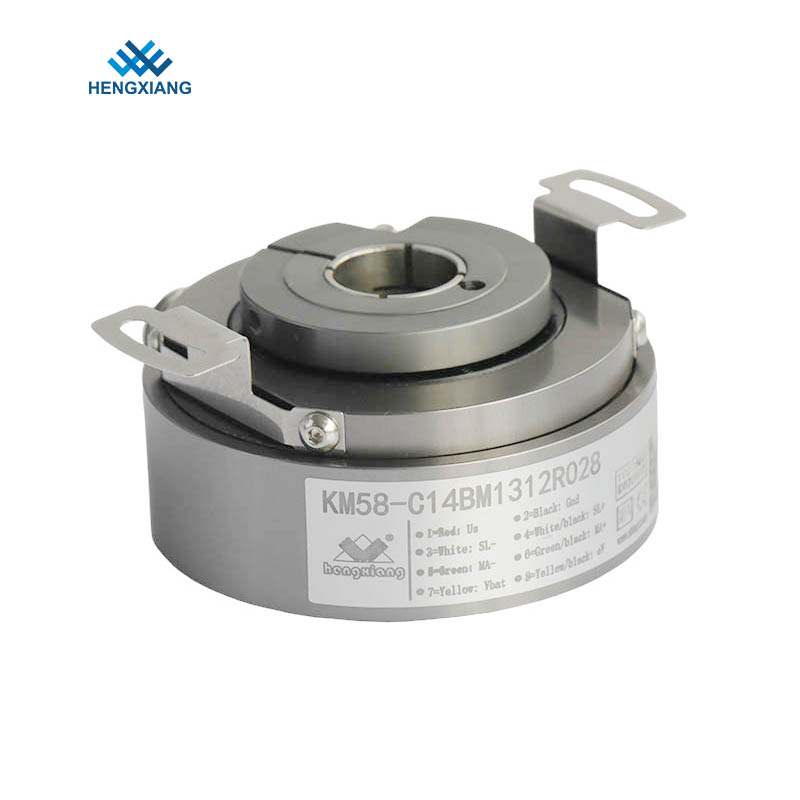

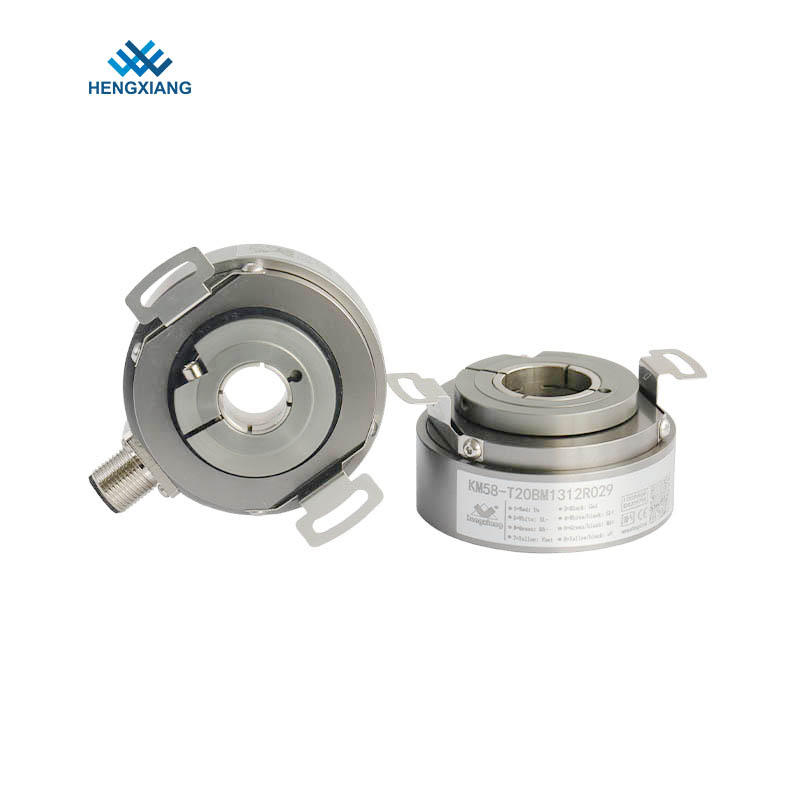

KM58 Multi-turn Absolute Encoder (Hollow Shaft)

KM58 Multi-turn Absolute Encoder (Hollow Shaft)

KM58-19bit single turn
Customization accepted.
Pulse frequency 5-24 bits, expandable to 32 bits, supports multiple communication interfaces.
Combination of single-turn photoelectric sensing and multi-turn magnetic induction.
Circuit with anti-interference measures.

Contact

Features
Technical Indicators

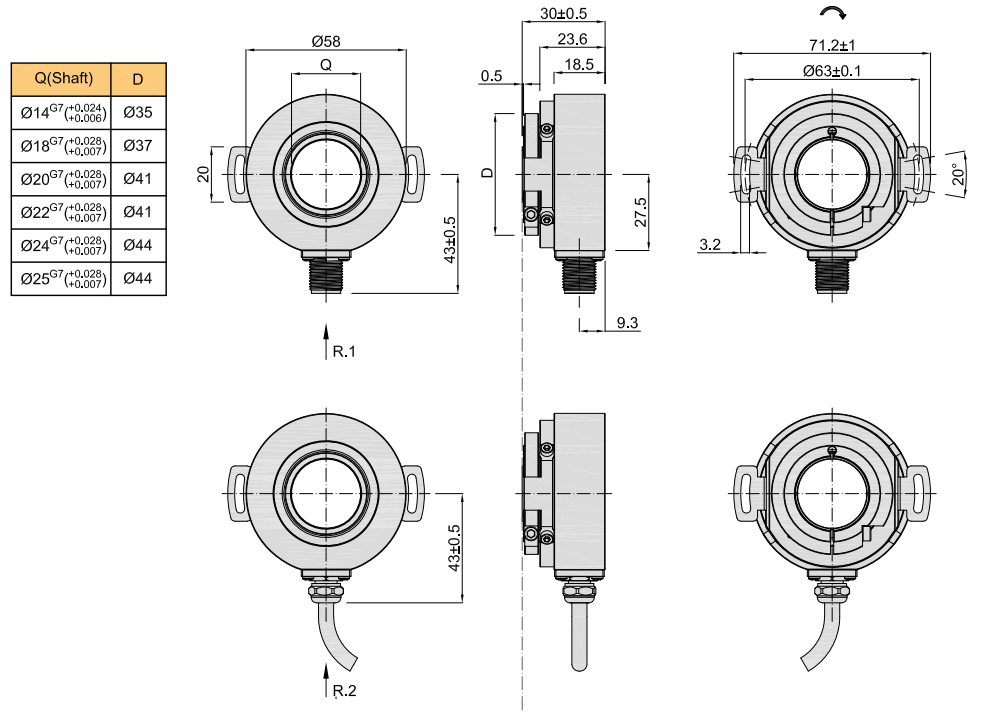

Overall Dimension

External diameter 58mm、thickness 30mm、diameter of shaft up to 25mm, Ring locking with shaft, flexible spring plate mounting. Adopt non-contact photoelectric reflection principle Interface: BiSS Cor SSl Accuracy: +80" Single-turn resolution of 24Bits is expandable up to max 32Bits. Support multi-turn data recording without power failure,the maximum recording is 24Bits. Introduction: KM58 is a through shaft rugged design with lP65 protection high precision photoelectric absolute encoder, capable ofoutputting 24Bits of single-turn position information, expandable up to 32Bits, can read up to 24Bits of multi-turn position information. The structure is sturdy and durable. Industrial efficiency starts with the right tools. Hengxiang’s OEM &, ODM encoder services create custom solutions, tailored to enhance performance in your specific setup.
Items Basic parameters Brand HENGXIANG Encoder type Absolute encoder External diameter 58mm Thickness 36-40mm Shaft type Hollow shaft Shaft diameter 14-25mm Bit(steps) Single-turn 17bits; 19bits; 20bits; 22bits; 24bits;Up to 32bits; Multi-turn: 16bits+(17-24bits) Outlet type Cable connection; Radial socket;Axial socket Electrical interface RS-485 Communication BISS C Binary/Gray) SSI (Binary/Gray) Protection grade IP50;IP65 Cable length 1M (cable length could be added appropriately by require, but it need payment individually) Response speed Normal action: 6000min-1 RMS position signal noise ±2 @18 Bits/r Communication clock frequency ≤10 MHz (BiSS) or ≤5 MHz (SSI) Starting time Typical value: 13ms Absolute position sampling priod ≤75 ns starting torque less than 9.8x 10-3N.m Intertia moment less than 6.5x 10-6kg.m² Shaft load Radial 60N; Axial 40N Allowed speed ≤6000r rpm Environmental temperature Operating:-40 ～+95°C；storage:-40 ～+95°C Enviromental humidity Operating and storage: 35-85%RH(noncondensing) Vibration(endure) Amplitude 1.52mm,5-55Hz,2 hours for three axis individually Shock(endure) 980m/s² ,11 ms three times for X,Y,Z direction individually Shaft Material Stainless steel Shell Material Aluminum alloy Certification CE package Carton box Net weight About 420g (with package)

Get the latest price? We will respond as soon as possible (within 12 hours)

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Absolute encoder
External diameter	58mm
Thickness	36-40mm
Shaft type	Hollow shaft
Shaft diameter	14-25mm
Bit(steps)	Single-turn 17bits; 19bits; 20bits; 22bits; 24bits;Up to 32bits;
	Multi-turn: 16bits+(17-24bits)
Outlet type	Cable connection; Radial socket;Axial socket
Electrical interface	RS-485
Communication	BISS C Binary/Gray)
Communication	SSI (Binary/Gray)
Protection grade	IP50;IP65
Cable length	1M (cable length could be added appropriately by
Cable length	require, but it need payment individually)
Response speed	Normal action: 6000min-1
RMS position signal noise	±2 @18 Bits/r
Communication clock frequency	≤10 MHz (BiSS) or ≤5 MHz (SSI)
Starting time	Typical value: 13ms
Absolute position sampling priod	≤75 ns
starting torque	less than 9.8x 10-3N.m
Intertia moment	less than 6.5x 10-6kg.m²
Shaft load	Radial 60N; Axial 40N
Allowed speed	≤6000r rpm
Environmental temperature	Operating:-40 ～+95°C；storage:-40 ～+95°C
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 1.52mm,5-55Hz,2 hours for three axis individually
Shock(endure)	980m/s² ,11 ms three times for X,Y,Z direction individually
Shaft Material	Stainless steel
Shell Material	Aluminum alloy
Certification	CE
package	Carton box
Net weight	About 420g (with package)
