LS100 incremental Linear Encoder
LS100-10GMiniaturized, ultra-thin component.
Utilizes a non-contact photoelectric reflective principle.
Resolution range: 40µm to 0.0125µm.
Electrical interface: differential RS422.
Maximum effective travel: 150mm.
-
Encoder overall size is 26.8mm x9.2mm
Total thickness 3.2mm(excluding the grating scale), which realizes a miniaturized ultra-thin component

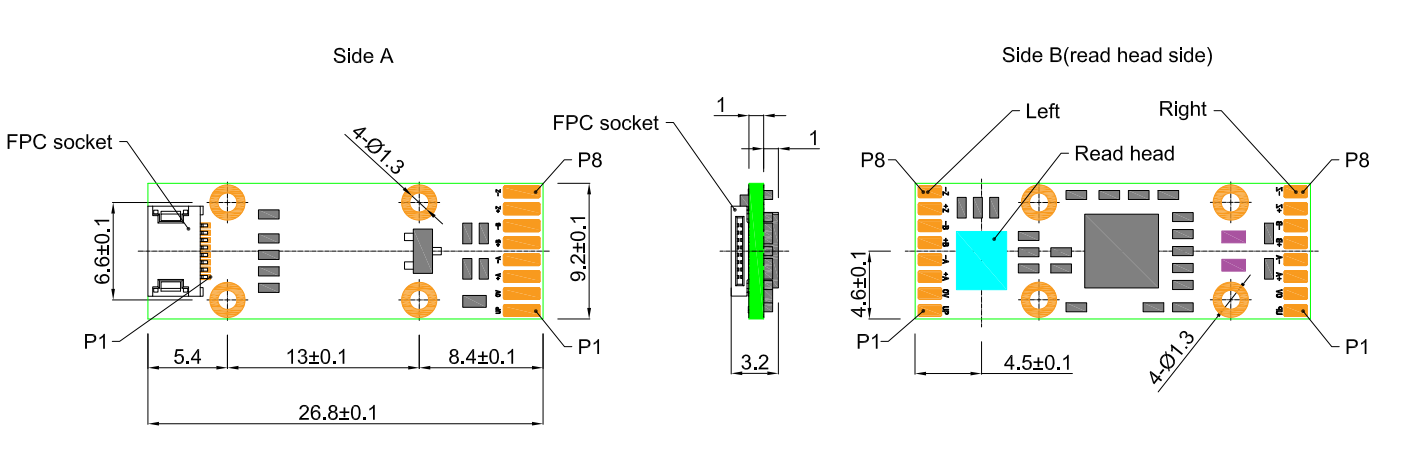

The installation size is 6.6mm x13mm, fixed with 4 M1.2 x3mmbolts
Adopt non-contact photoelectric reflection principle
Resolution 40um~0.0125um
The electrical interface uses differential RS422.
Effective stroke max 150mm.
Introduction :
LS100 is a linear encoder assembly composed of a photoelectric reflective encoder and a linear grating scale. The LED light of theread head is reflected back to the light receiving point on the grating scale to detect different modules on the grating scale, and outputs A and B phase signals of complete sine and cosine waves.The division multiple can be set arbitrarily through the interpolator to achieve high resolution. The division multiple of A and B phases can reach up to 6400 times.
We work closely with you to develop custom-made encoders that address your specific needs, making sure the final product meets all your expectations. -
Items
Basic parameters
Brand
HENGXIANG
Encoder type
Incremental Linear encoder
External diameter
26.8mm x 9.2mm
Thickness
3.2mm
Resolution
40um~0.0125um
Output phase
Phase A,B,Z,A-,B-Z
Supply voltage
DC5V
Outlettype
With FPC socket
Without FPC socket
Output mode
RS422
Protection grade
IP50
Cable length
1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current
50mA MAX
Top response frenquency
100KHZ
Rise/ Fall time
100nsec Max
starting torque
less than 5x 10⁻⁴ N.m
Intertia moment
less than 0.3x 10⁻⁶ kg.m²
Shaft load
Radial 2N; Axial 2N
Top REV
5000r rpm
Environmental temperature
Operating:-10 ～+70°；storage:-15 ～+75°
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 0.75mm,10-50Hz,1 hours for three axis individually
Sock(endure)
49m/s² ,three times for X,Y,Z direction individually
Shaft Material
Stainless steel
Shell Material
aluminium alloy;304
Cable length
150mm
Certification
CE
package
Carton box
Net weight
About 20g (with package)
-
