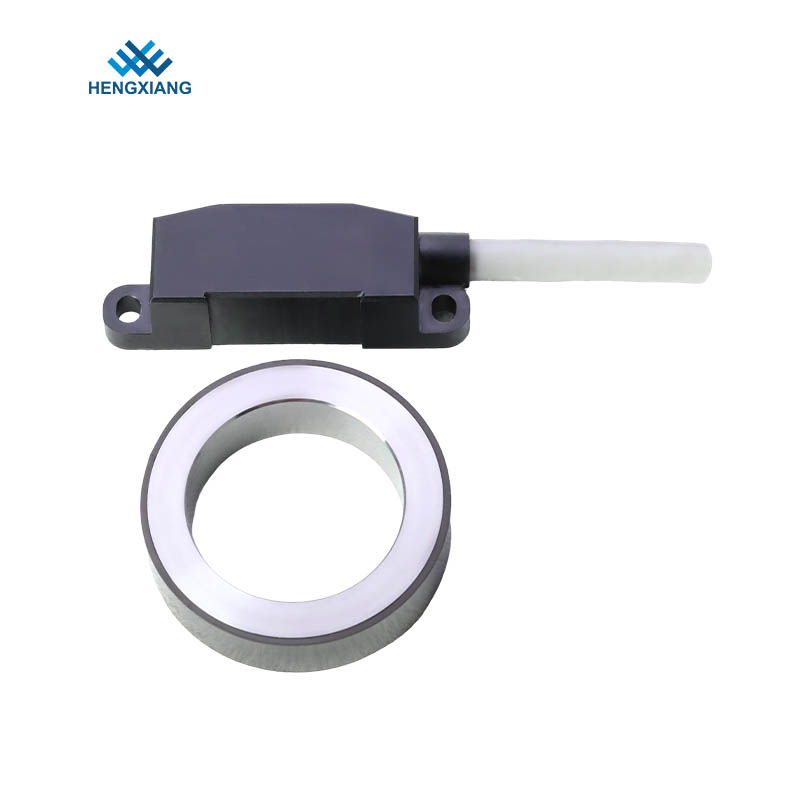

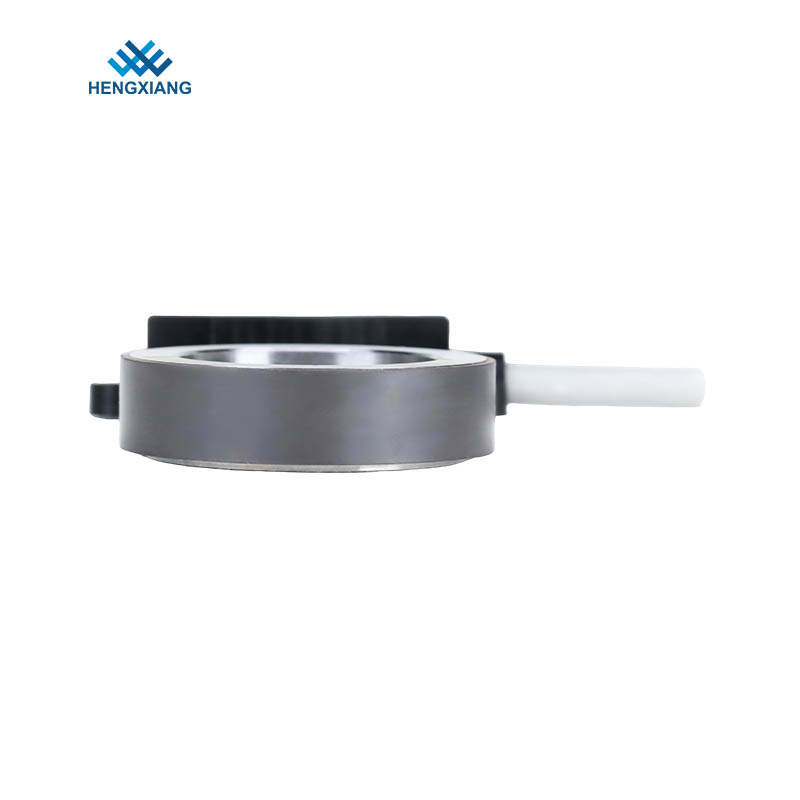

WSN49 Bearing-ess Magnetic Encoder (Hollow Shaft)
WSN49 (64-1024ppr)Utilizes a non-contact magnetic induction principle.
High precision, maximum error of ±0.3°.
Maximum speed: 18,000 rpm.
Output circuit: HTL or TTL.
Resolution up to 8192 PPR per revolution.
Reverse polarity protection.
-
Adopts non-contact magnetic induction principle
High precision, max error + 0.3°
Max speed: 18000 rpm
Output circuit: HTL or TTL
Resolution up to 8192PPR per cycle
Reverse polarity protection

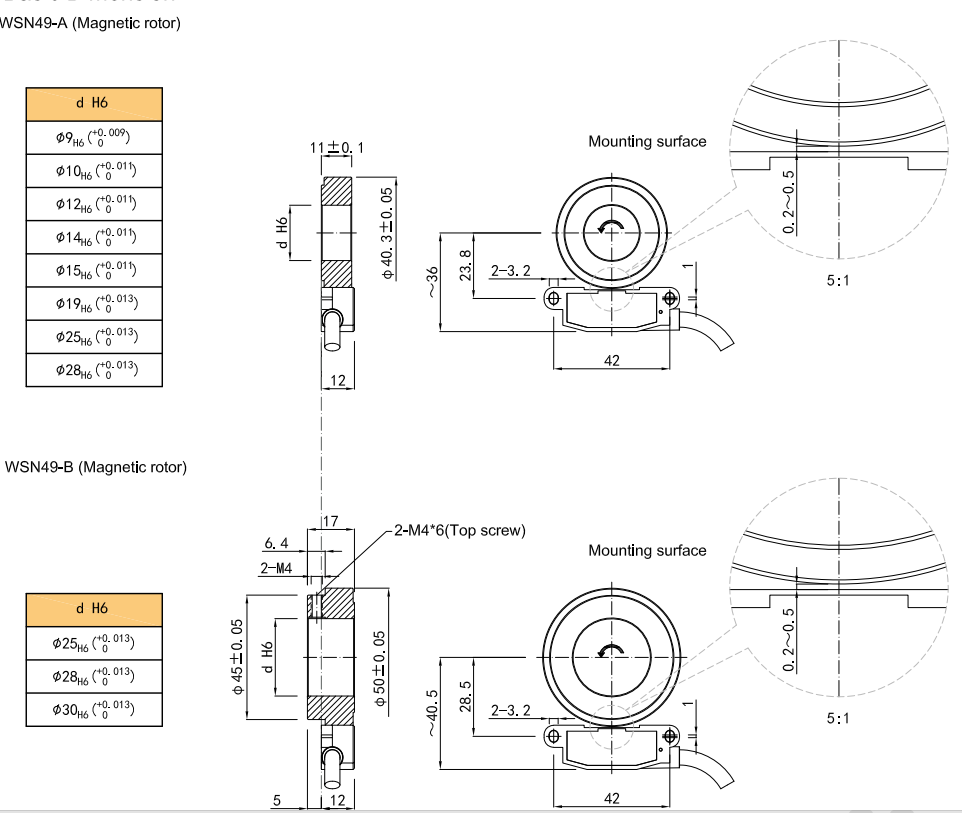

Magnetic rotor is included in the scope of delivery.
Introduction:
WSN49 is a maintenance-free off-axis bearing-less magneticencoder, which is quick, easy and space-saving to install,highly resistant to pollution and shock, and is widely used inindustrial automation fields with relatively poor environments
We work closely with you to develop custom-made encoders that address your specific needs, making sure the final product meets all your expectations.
-
Items
Basic parameters
Brand
HENGXIANG
Encoder type
Bearingless magnetic encoder
Shaft Diameter
9-30mm
Shaft type
Hollow shaft
Resolution
64-8192ppr
Output phase
Phase A,B,Z,A-,B-Z
Supply voltage
DC5V
Outlettype
With FPC socket
Without FPC socket
Output mode
TTL /HTL
Protection grade
IP67
Cable length
1M (cable length could be added appropriately by
require, but it need payment individually)
-
